MCP

Overview

MCP (Model Context Protocol) is an open standard that lets AI tools interact with external services. SheetOS exposes an MCP server — meaning any compatible AI tool can read your data, create tables, run Python, and manage automations directly.

This lets you use SheetOS from tools like Claude Code, Cursor, or Windsurf without leaving your editor.

Server details

Endpoint	https://api.sheetos.ai/api/v1/mcp
Transport	Streamable HTTP
Auth	Bearer token (API key)

Setup

1. Create an API key

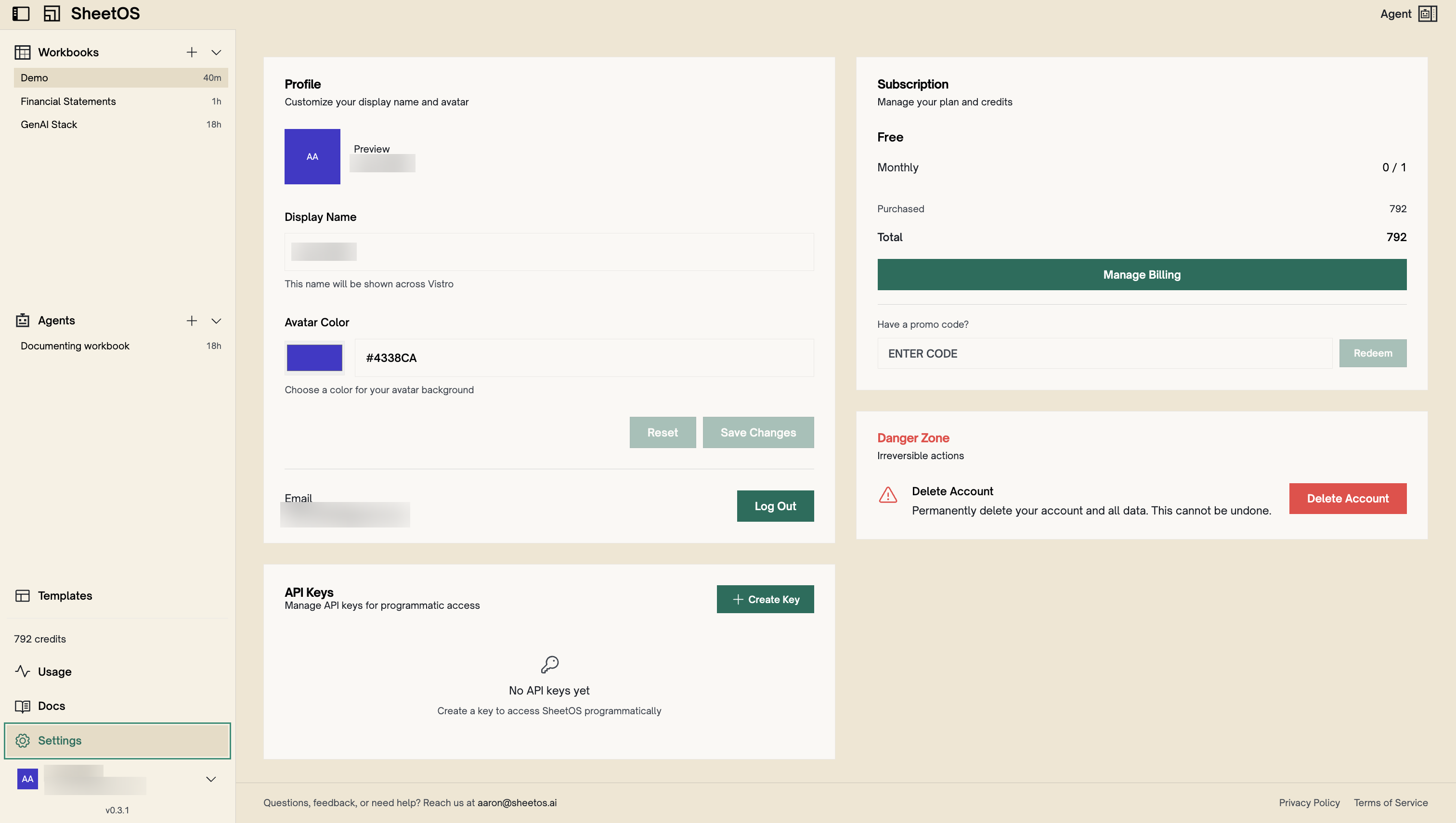

Go to Settings in the SheetOS app and create an API key. You’ll need this to authenticate your MCP connection.

2. Add the config to your client

Add this configuration to your MCP client’s config file. Replace <your-api-key> with the key from step 1.

{
  "mcpServers": {
    "sheetos": {
      "type": "http",
      "url": "https://api.sheetos.ai/api/v1/mcp",
      "headers": {
        "Authorization": "Bearer <your-api-key>"
      }
    }
  }
}

3. Restart your client

Restart or reconnect your AI tool to pick up the new server.

Client-specific setup

Client	Config file	Location
Claude Code	.mcp.json	Project root
Cursor	.cursor/mcp.json	Project root
Windsurf	~/.codeium/windsurf/mcp_config.json	Home directory

Claude Code — Restart your session, or run /mcp to reconnect.

Cursor — Restart Cursor or reload the window (Cmd+Shift+P → “Reload Window”).

Windsurf — Restart Windsurf to pick up the new config.

Tools

Every MCP connection exposes the following tools. All tools that operate on a specific workbook require a workbook_id parameter.

Tool	Description
list_workbooks	List all workbooks accessible to you. Returns IDs, names, descriptions, and page counts.
create_workbook	Create a new workbook.
read_workbook_state	Read live operational state: recent activity, engine status, and automation runtime.
read_table	Read rows from a table with pagination and column filtering.
read_sheet	Read data from a sheet range.
query	Execute a SQL SELECT query against the workbook database. Supports JOINs, aggregations, GROUP BY, CTEs, and cross-table queries.
list_files	List files in the workbook filesystem. Filter by directory path.
read_file	Read file contents. Supports text files, images, PDFs, and Office documents.
write_file	Create or update files. Supports full writes and targeted string replacements.
delete_file	Delete a file from the workbook filesystem.
run	Execute Python code in the workbook context with access to the full SheetOS SDK.
load_context	Load detailed documentation for specific SDK modules or platform guides on demand.

Troubleshooting

Connection fails with 401 — Your API key is invalid or expired. Create a new one in Settings.

Connection fails with 404 — Wrong URL. The endpoint must be exactly https://api.sheetos.ai/api/v1/mcp.

Transport type must be http — SheetOS uses streamable HTTP transport. Do not use sse — it will hang or fail with a parse error.

Config not loading — Ensure the config file is in the correct location for your client. Some clients require a restart to detect new MCP servers.
